Air Brake Chambers

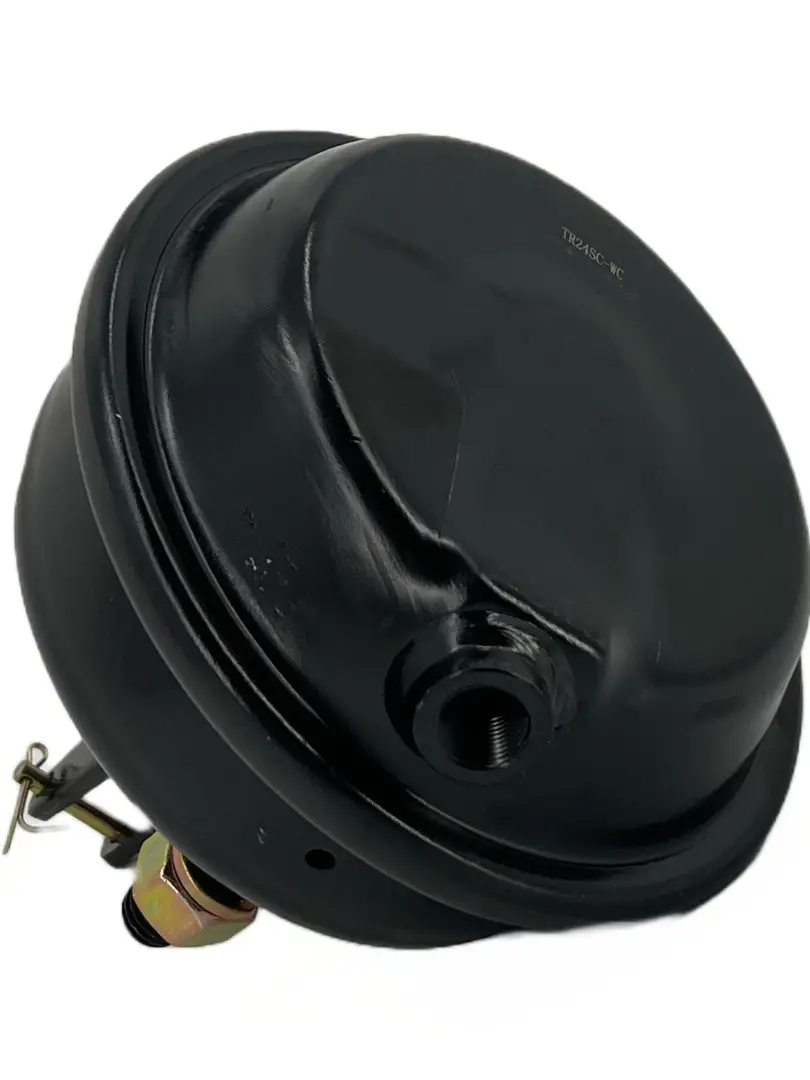

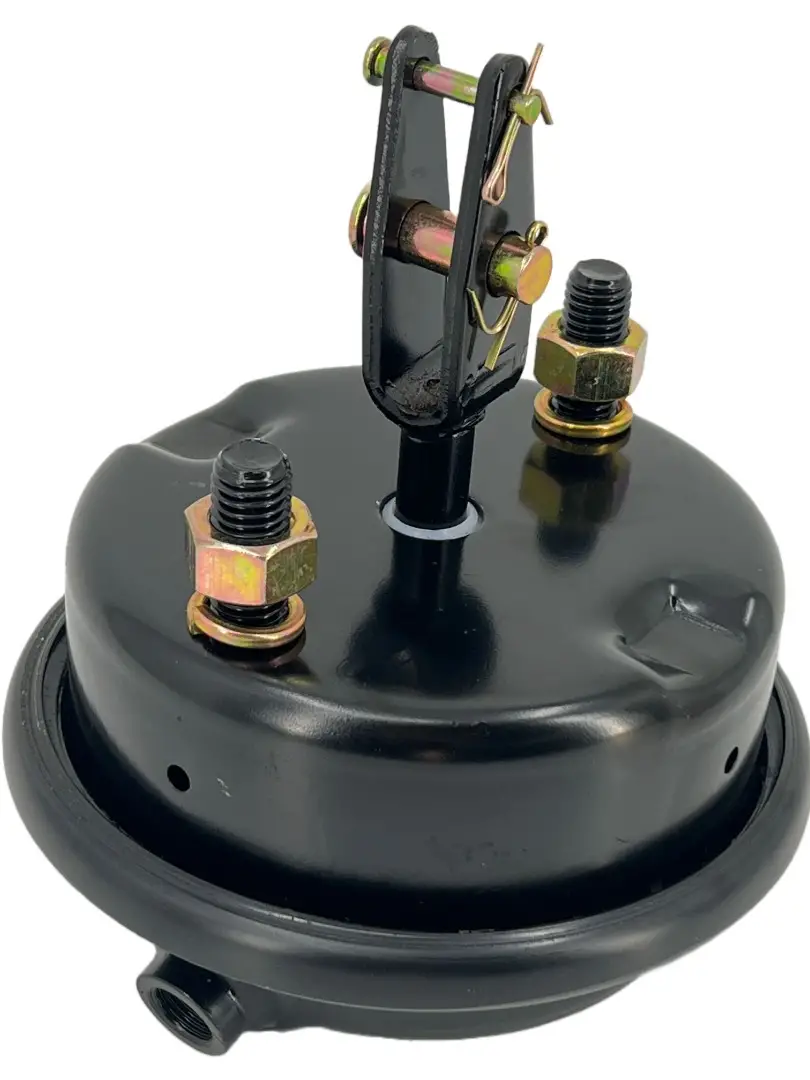

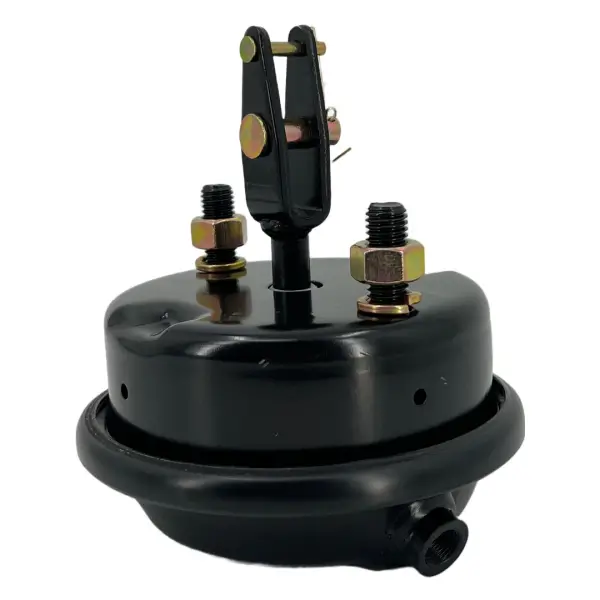

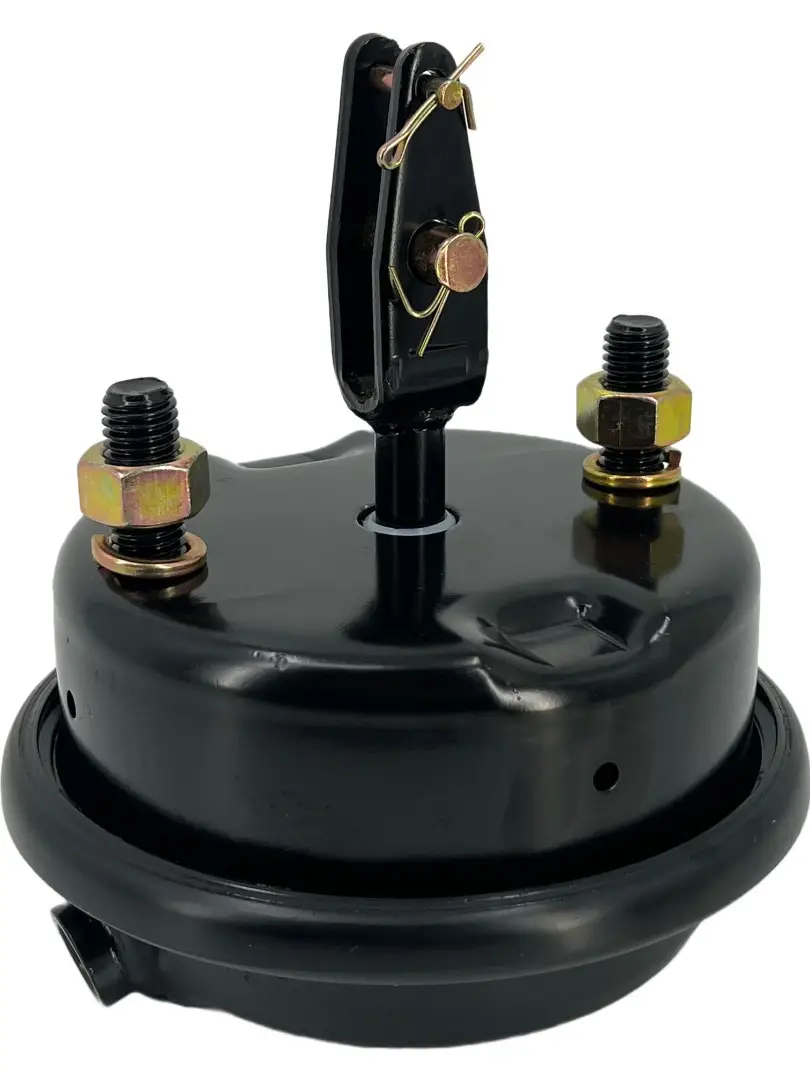

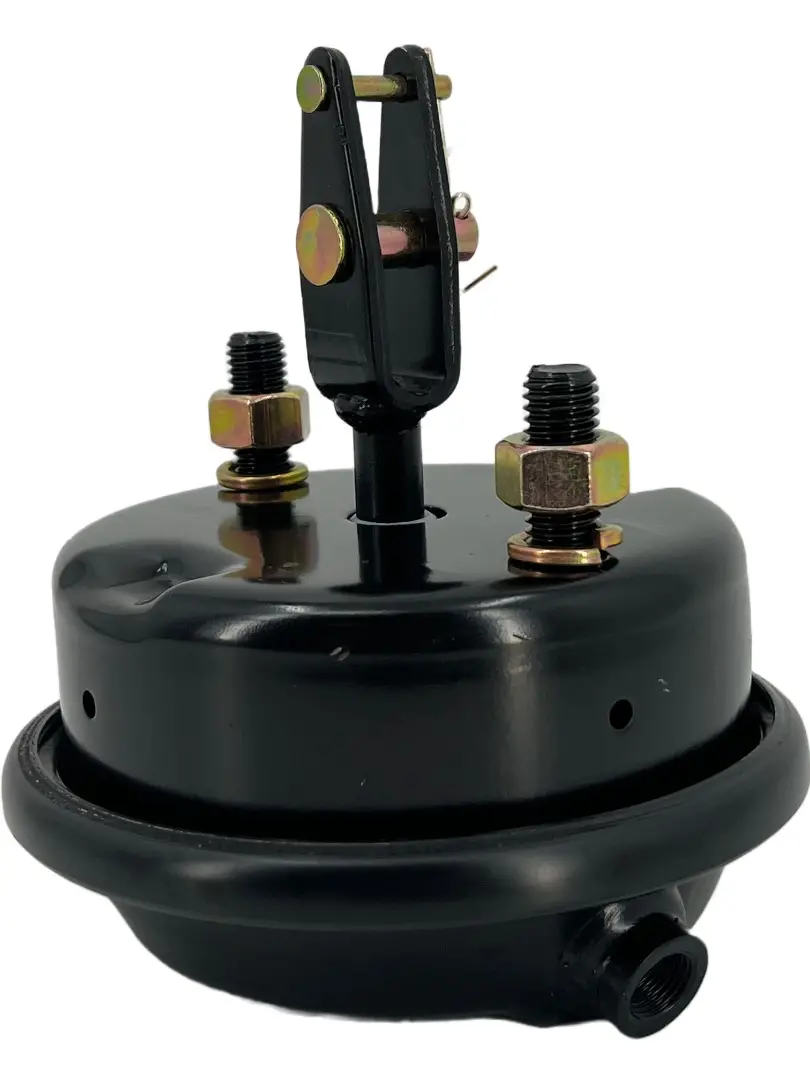

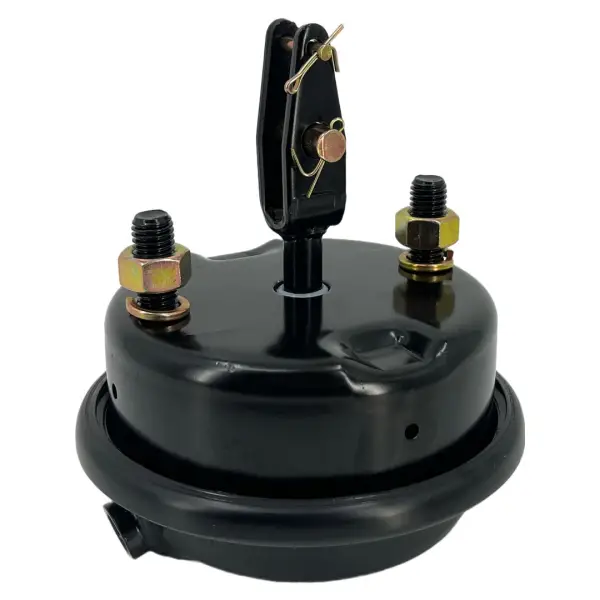

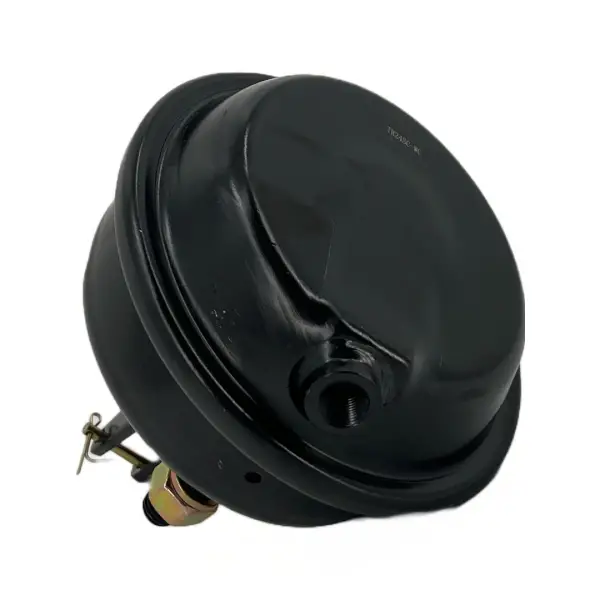

Description : Long Stroke Air Brake Chamber Type 24 with Welded Clevis

Part Number : TR24SC-WC

Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Click to see price
Long Stroke Service Brake Chamber Type 24 with Welded Clevis
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 179.M1427901, 179.SC24XLW225
Bendix K058753
MGM 1427901, 1427902
Property Value
Chamber Type 24
Service Chamber Joint Type Double Clamp Band
Stud Thread Size 5/8‑11 UNC‑2A
Mounting Stud Length 1.50 IN
Stud Spacing 4.75 IN
Stroke 2.50 IN
Push Rod Length 3.90 IN
Service Port Side 3/8‑18 NPT
Service Port Center 3/8‑18 NPT (Plugged)
Port Angle 0°
Clamp Angle 0°
Pin Diameter 0.50 IN
Link Pin Diameter 0.25 IN
Clevis Pin Spacing 1.30 IN
Inner Box
Longest Side Median Side Shortest Side Weight
7.87" 7.60" 7.60" 15.74 lbs
Outer Box
Quantity Longest Side Median Side Shortest Side Weight
54 21.26" 21.26" 21.26" 1,715.19 lbs
