Air Brake Chambers

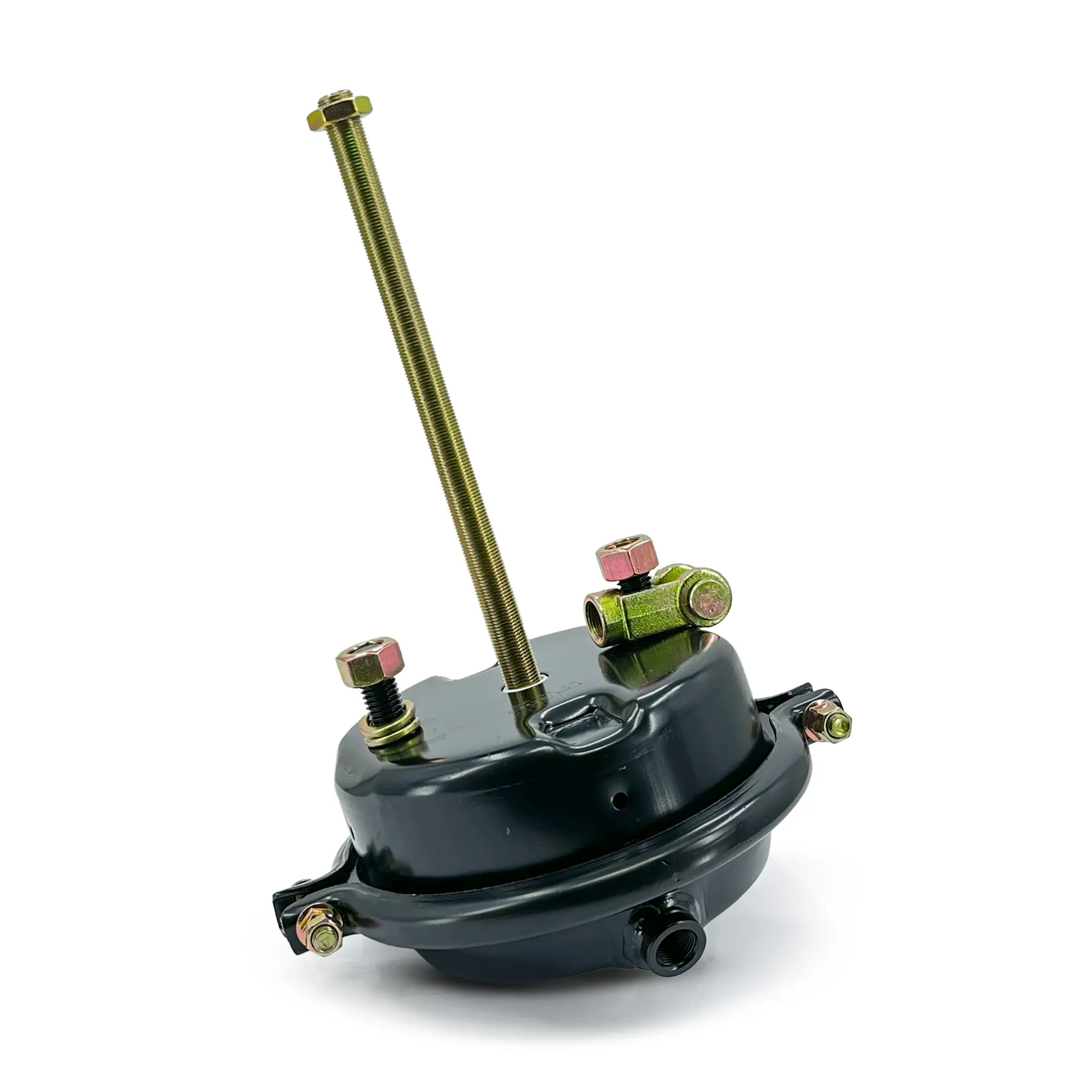

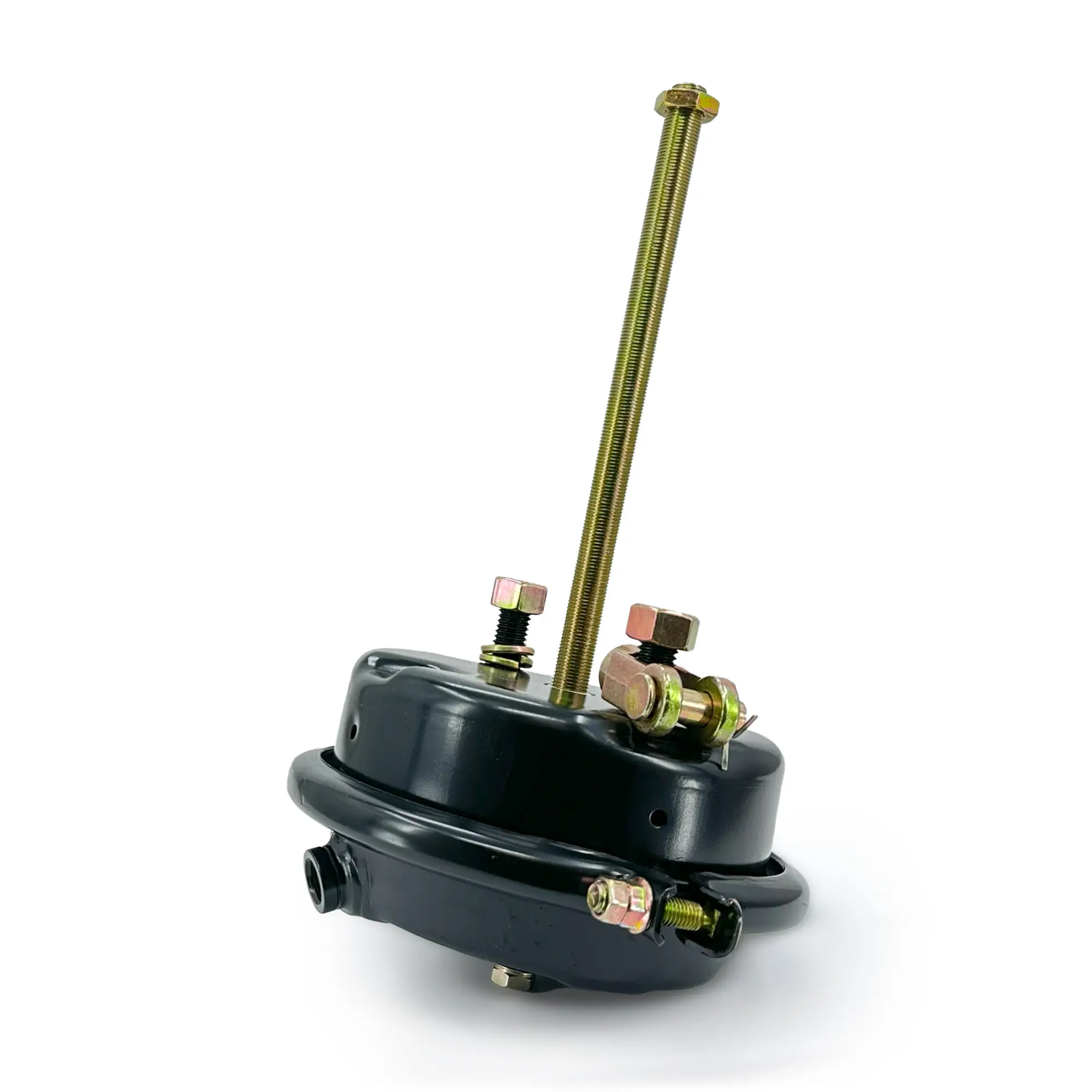

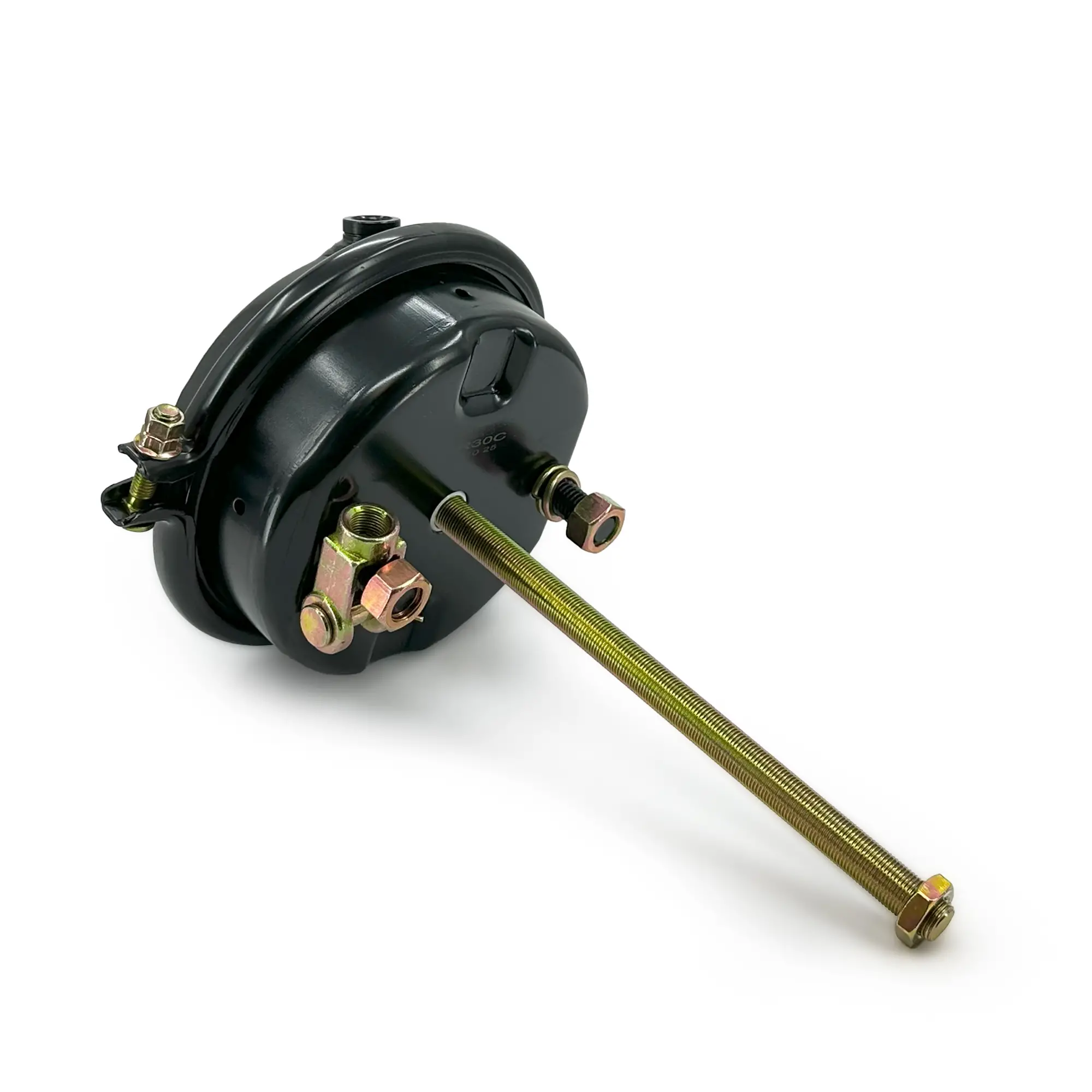

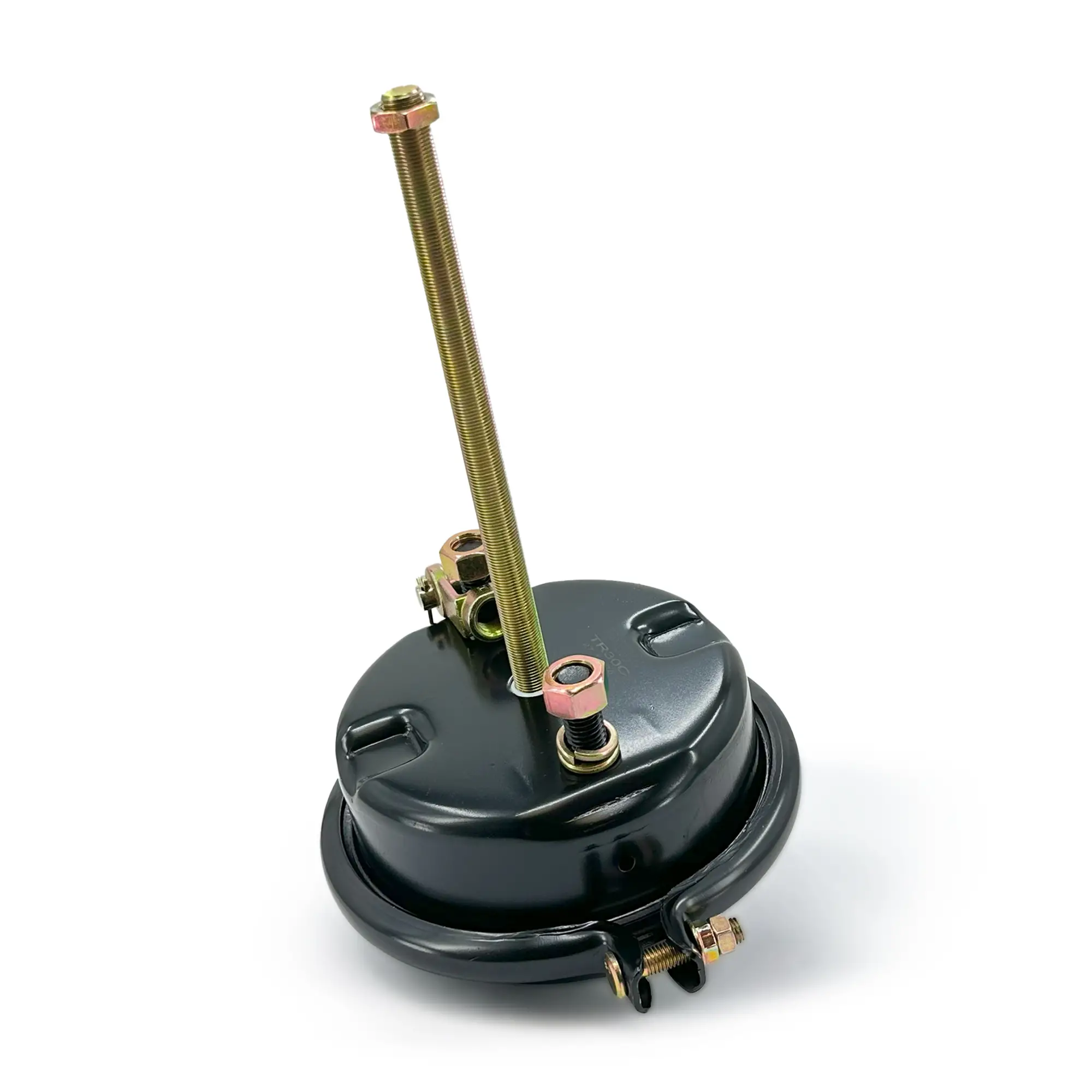

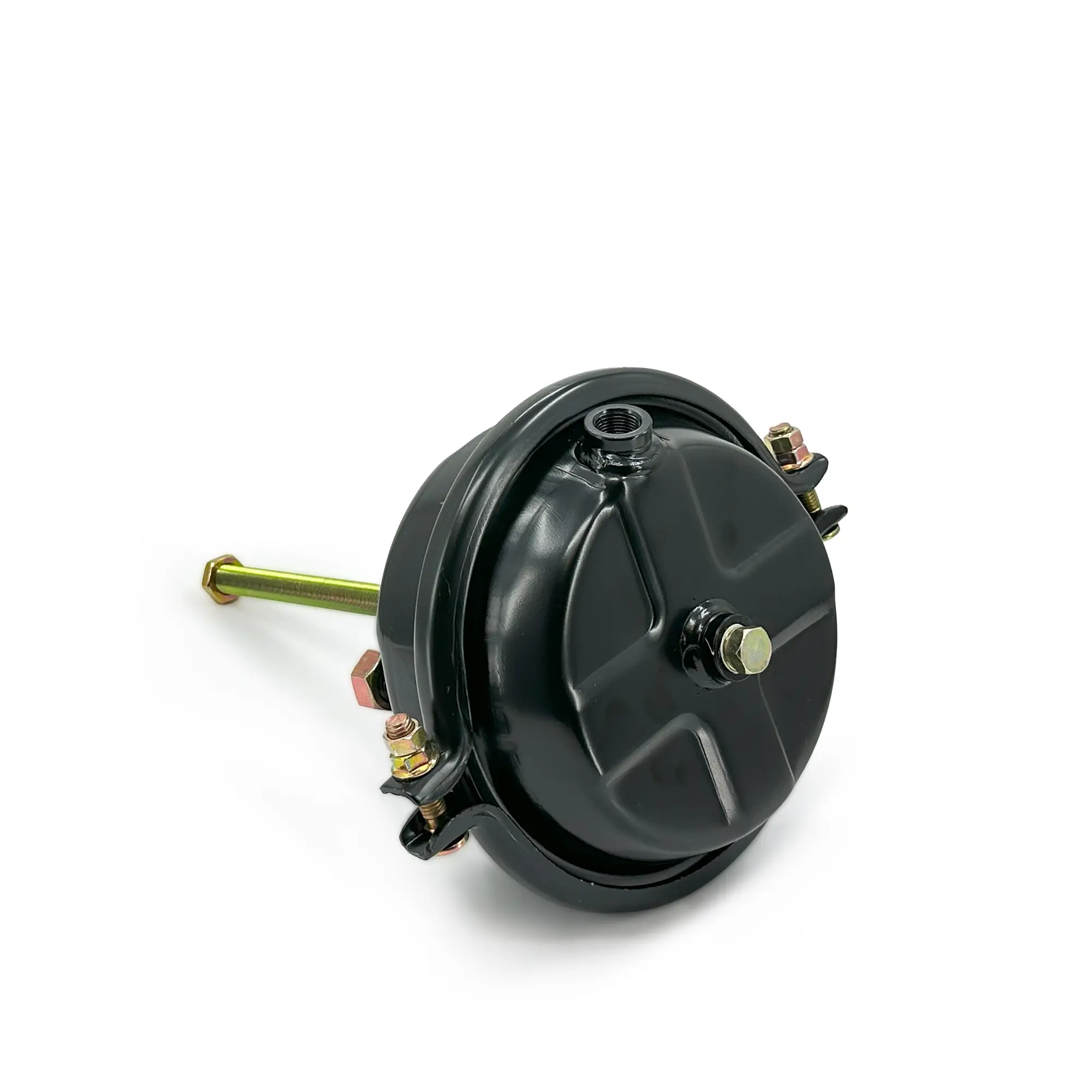

Description : Air Brake Chamber Service Type 30

Part Number : TR30SC

Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Click to see price
Service Brake Chamber Type 30 for Truck and Trailer Air Brake Systems
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Haldex SC30, 3000001, 53000001, MA36300
Property Value
Actuator Type Size 30
Stroke Type Standard
Available Stroke 2‑1/2" (64mm)
Air Port Threads 3/8"‑18 NPTF
Length from Mounting Bracket to End of Housing 3‑11/16" (94mm)
Clampband Diameter 10‑3/16" (259mm)
Stud Spacing 4‑3/4" (120.7mm)
Pushrod Length 10"
Pushrod Threads 5/8"‑18 UNF
Air Port Position 90°
Maximum Air Pressure 150 PSI
Weight 10.3 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
15.67" 9.84" 8.11" 24.41 lbs

No outer box information is available for this product.
