Air Brake Chambers

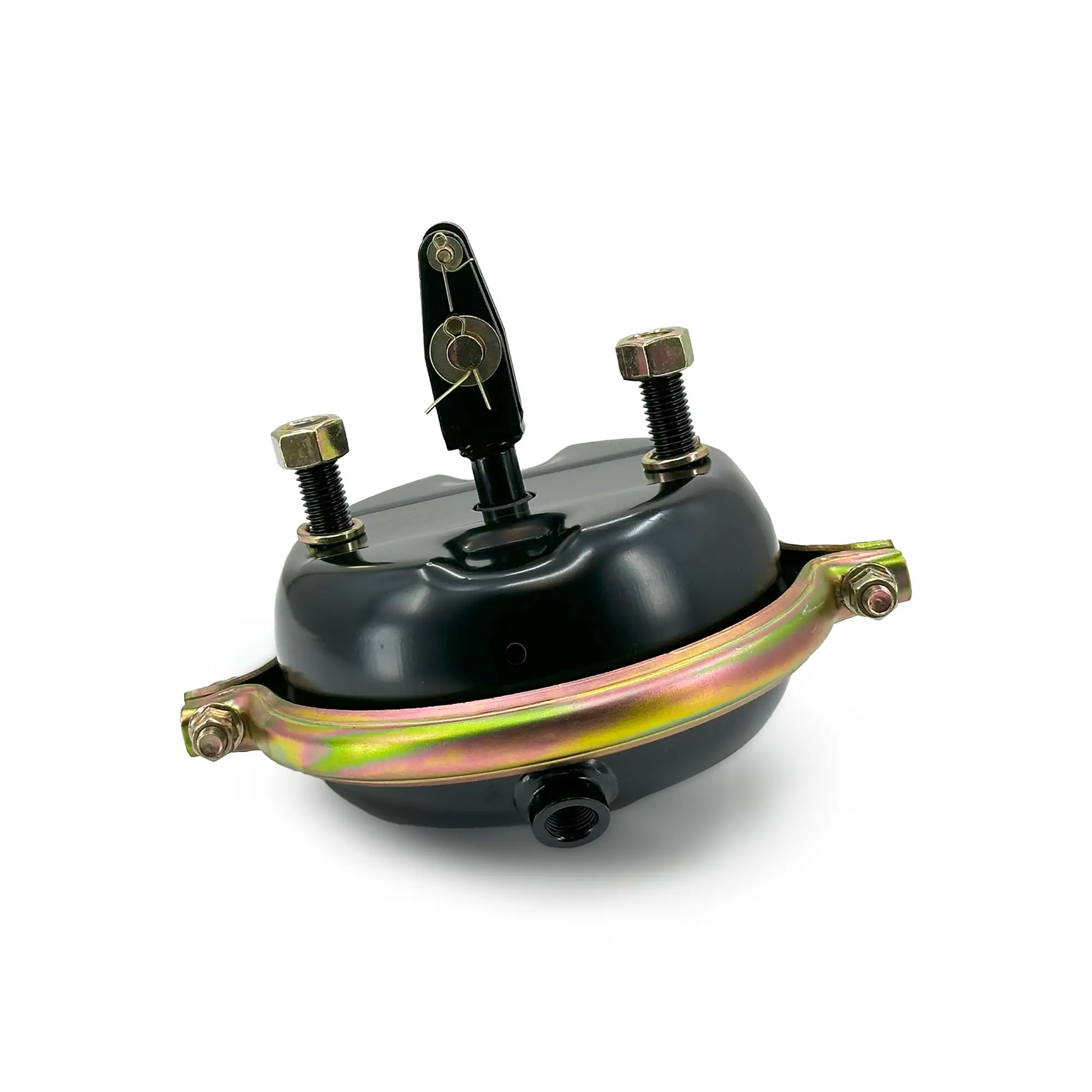

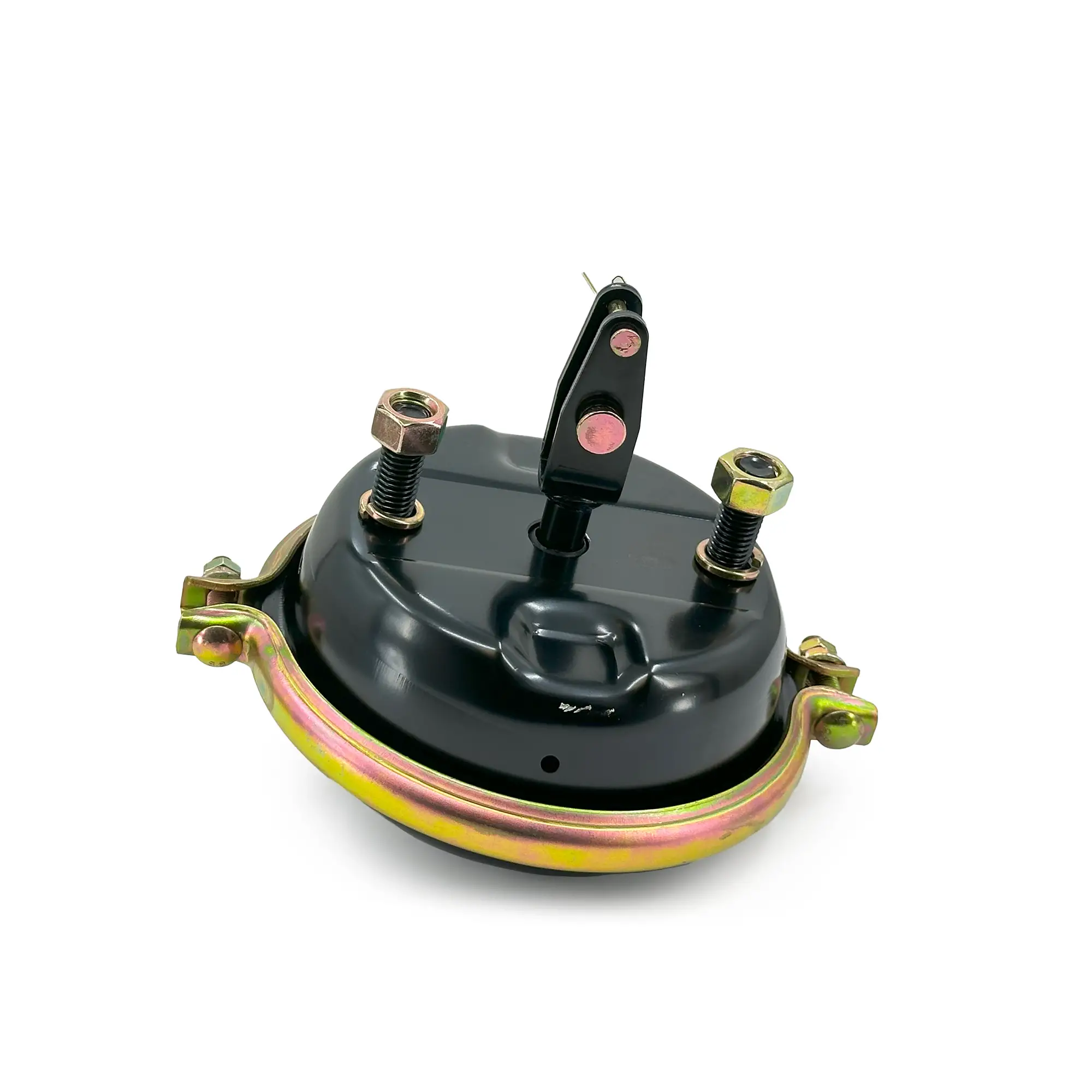

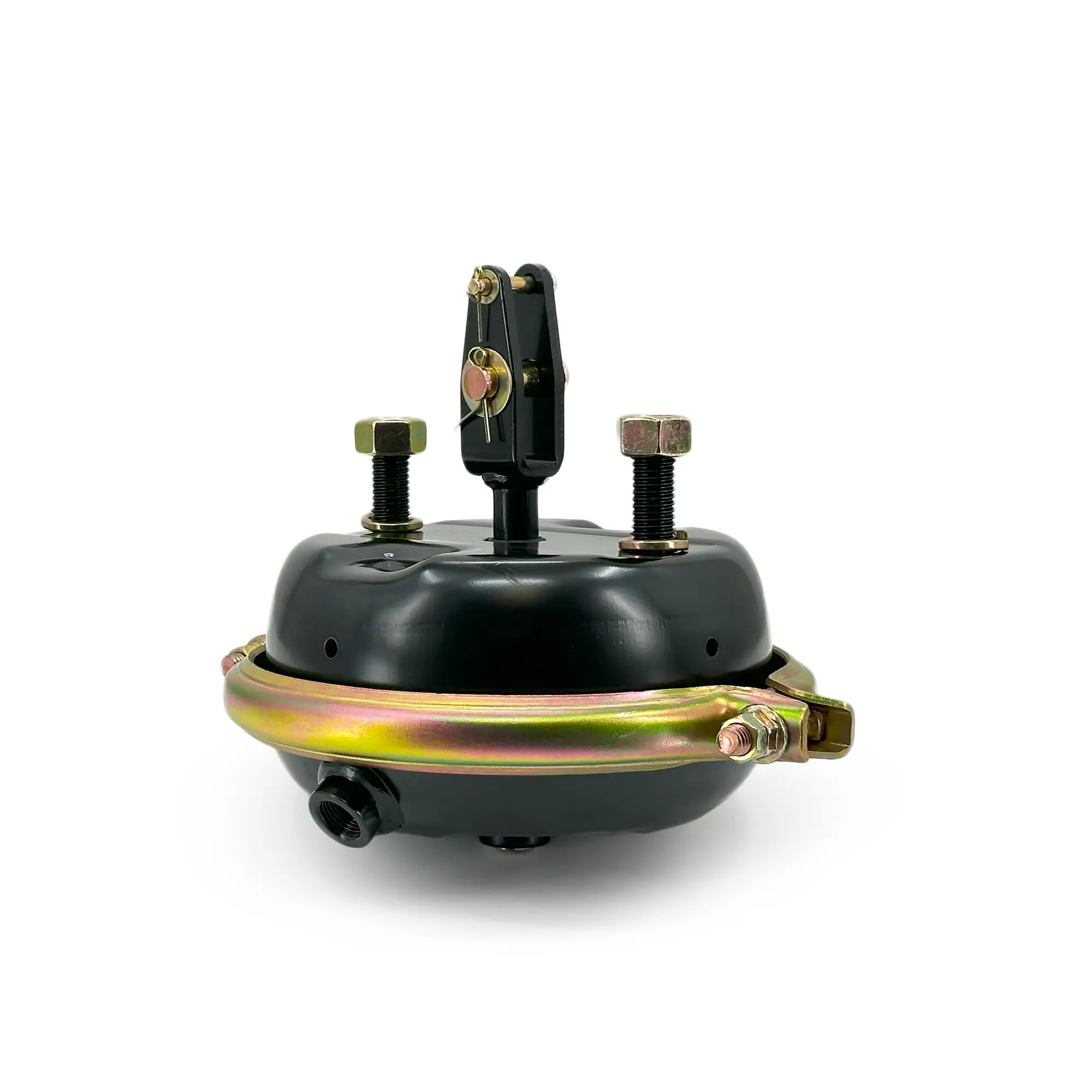

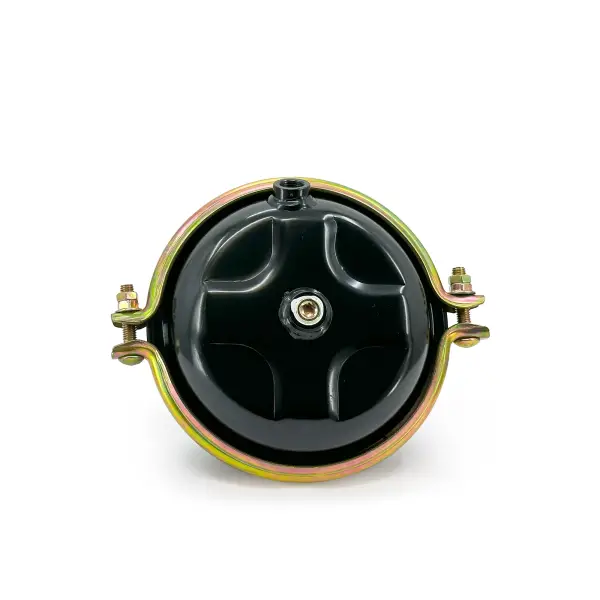

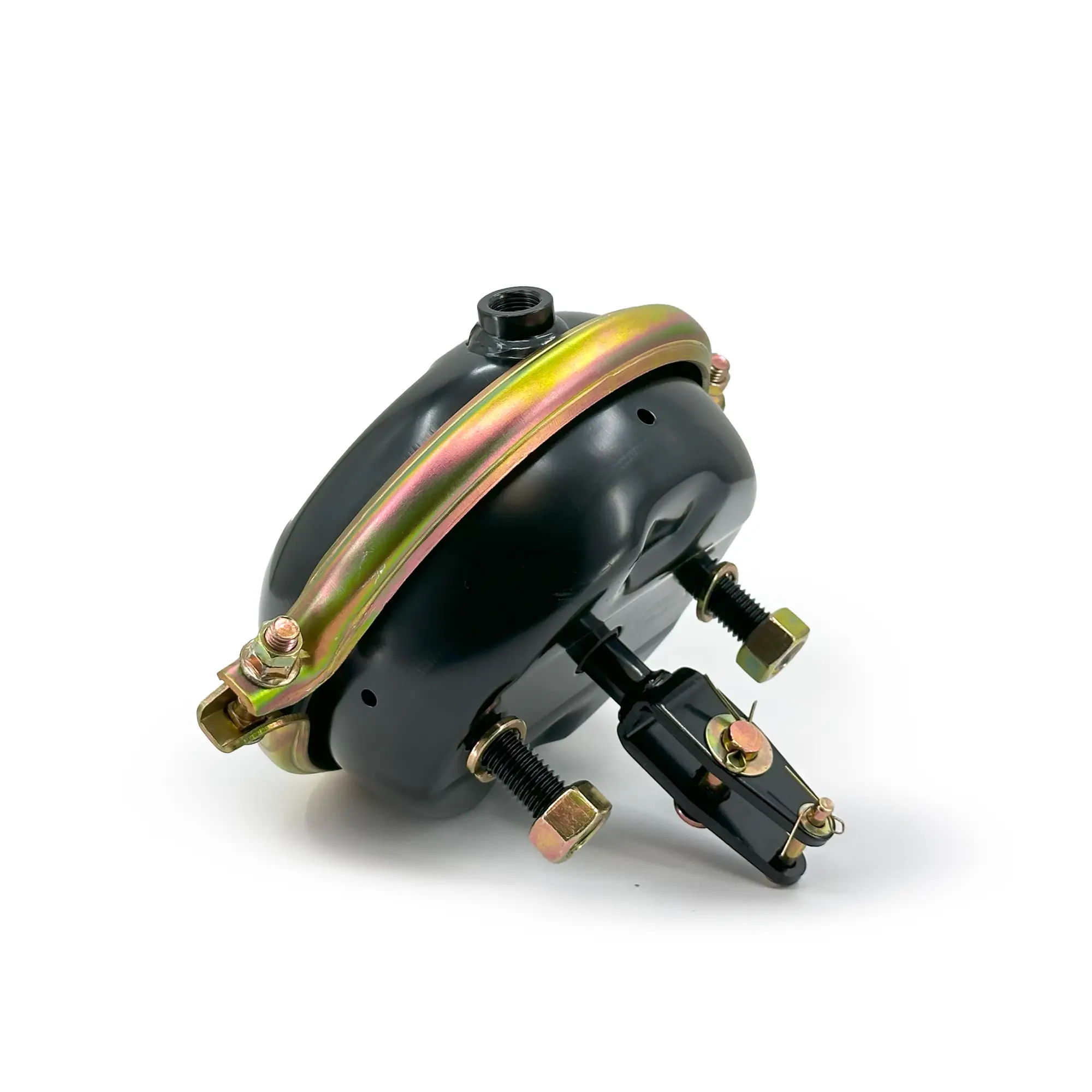

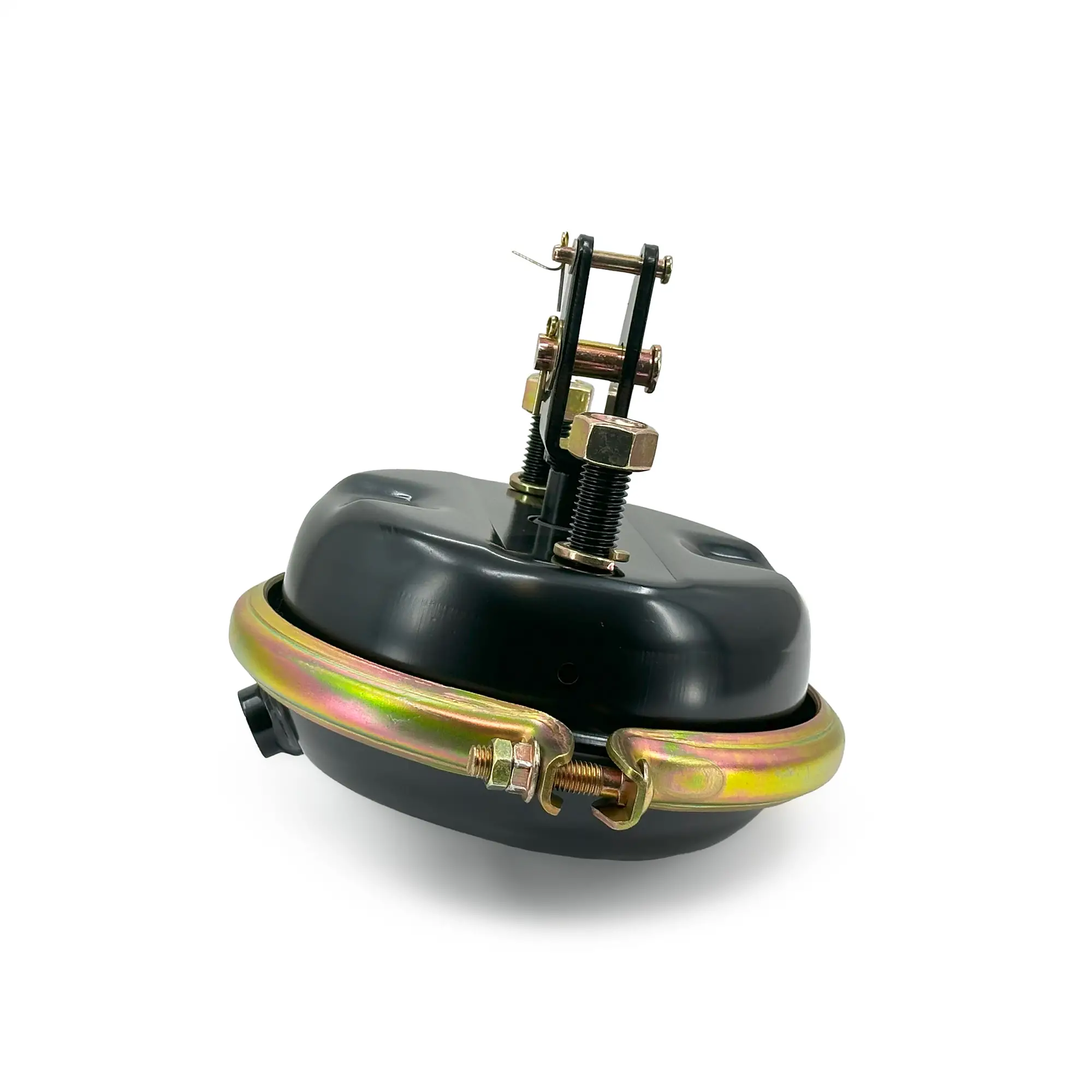

Description : Air Brake Chamber Service Type 30 with Welded Clevis

Part Number : TR30SC-WC

Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Click to see price
Service Brake Chamber Type 30 with Welded Clevis for Truck and Trailer Applications
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 179.SC30
Bendix 5007121N, 800826
Euclid E30S, EBC30S
Haldex SC30, 3000001, 53000001, MA36300
MGM 1430001
Midland KN36300
Property Value
Actuator Type Size 30
Stroke Type Standard
Available Stroke 2‑1/2" (64mm)
Air Port Threads 3/8"‑18 NPTF
Length from Mounting Bracket to End of Housing 3‑11/16" (94mm)
Clampband Diameter 10‑3/16" (259mm)
Maximum Air Pressure 150 PSI
Weight 10.3 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
8.66" 7.87" 7.87" 19.69 lbs

No outer box information is available for this product.
