Air Brake Chambers

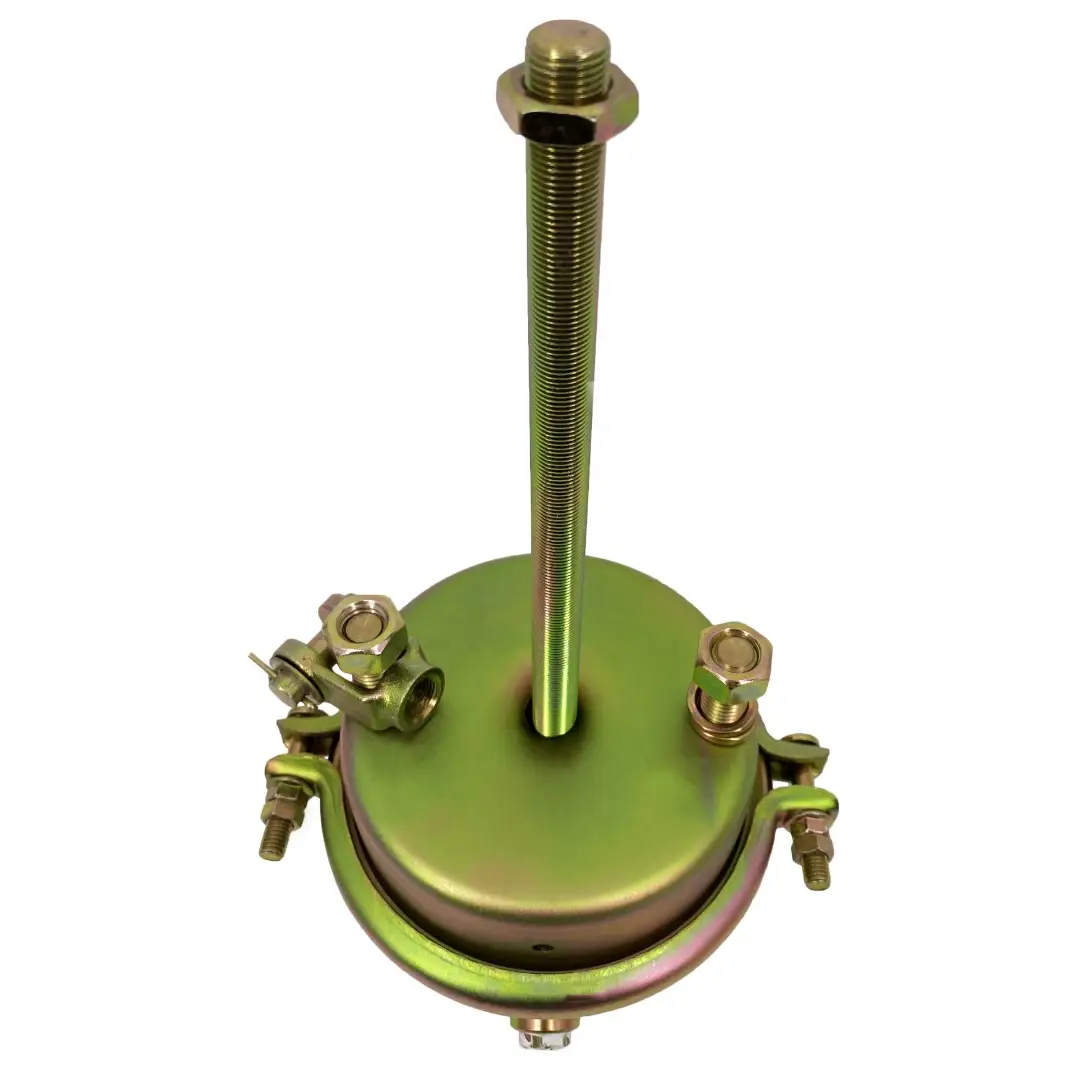

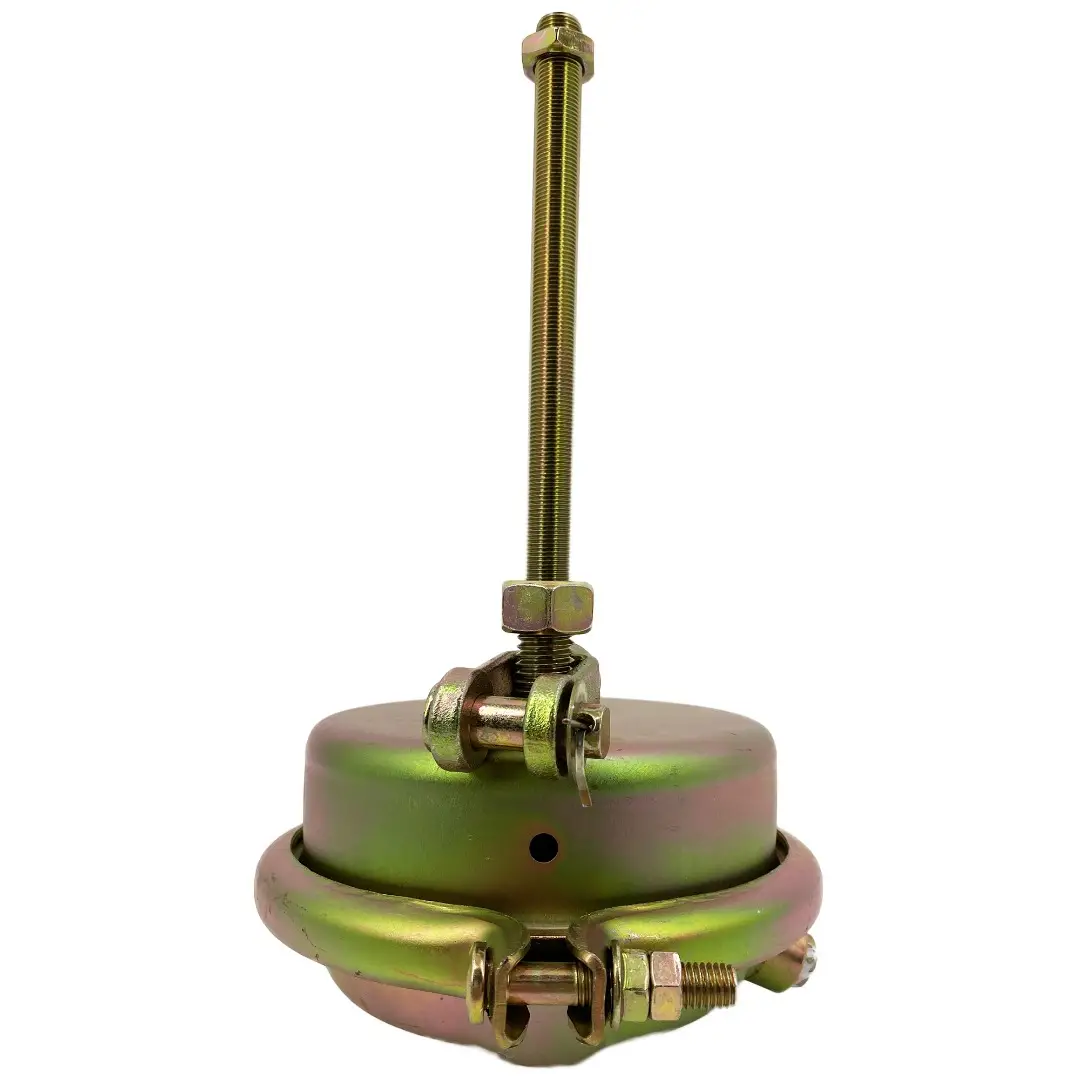

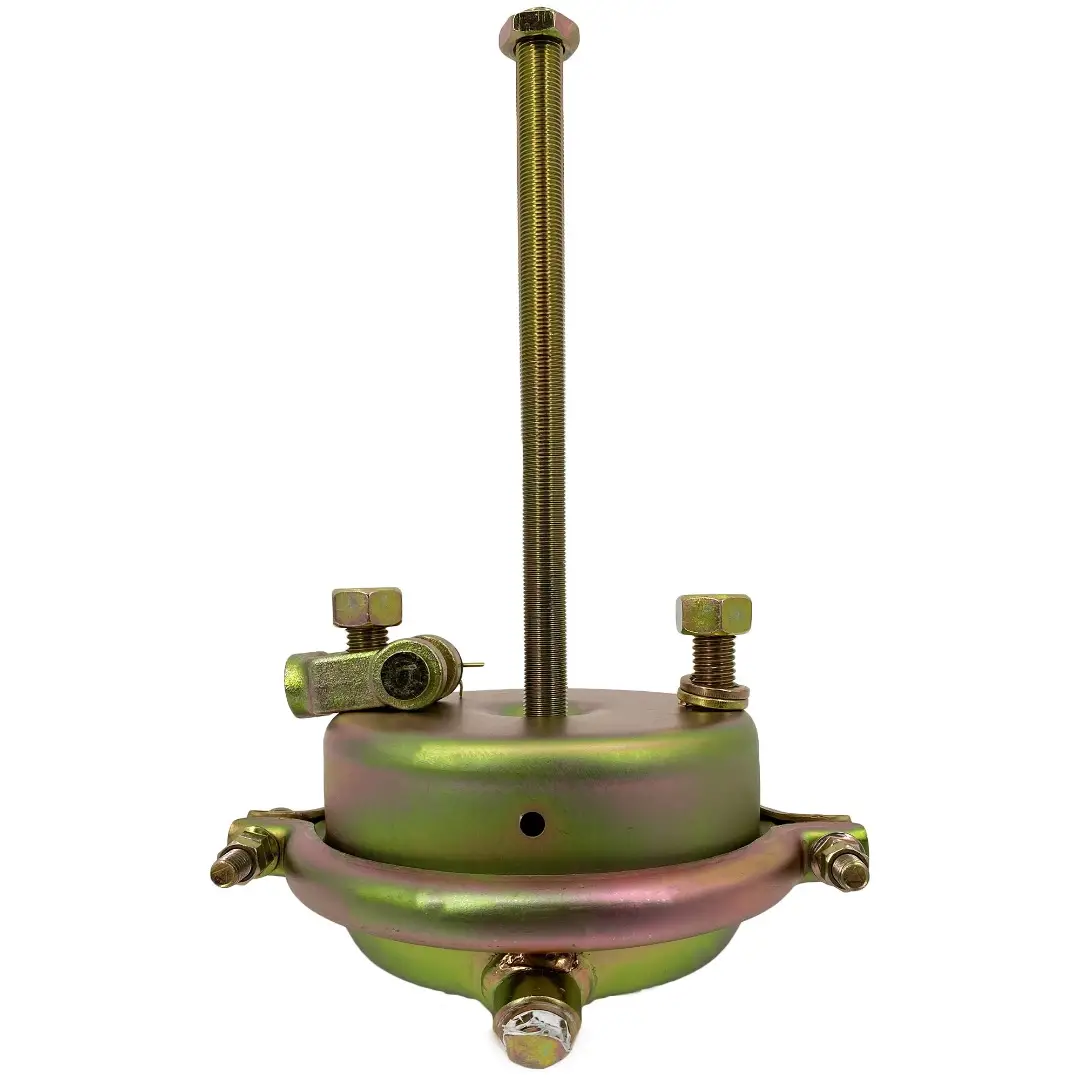

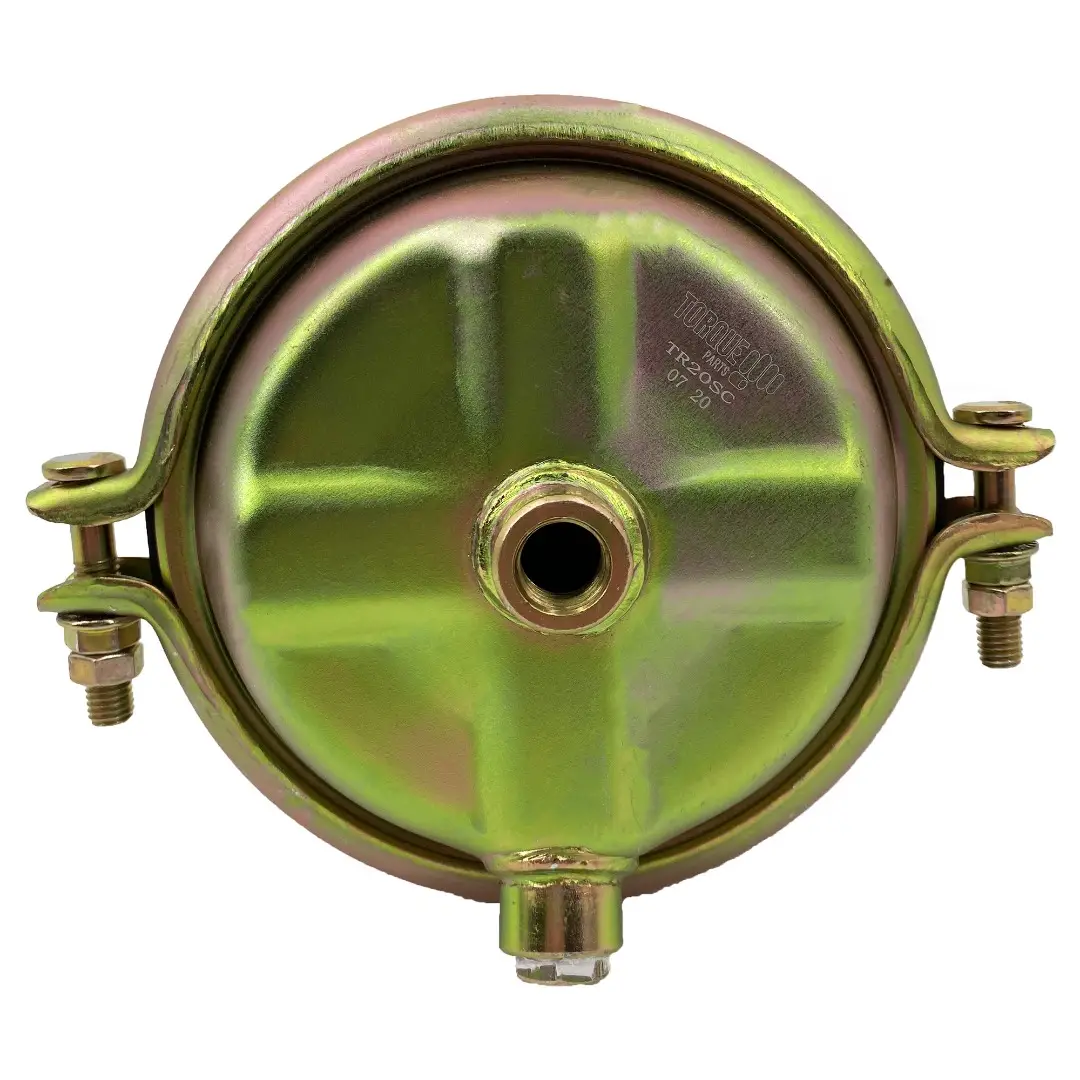

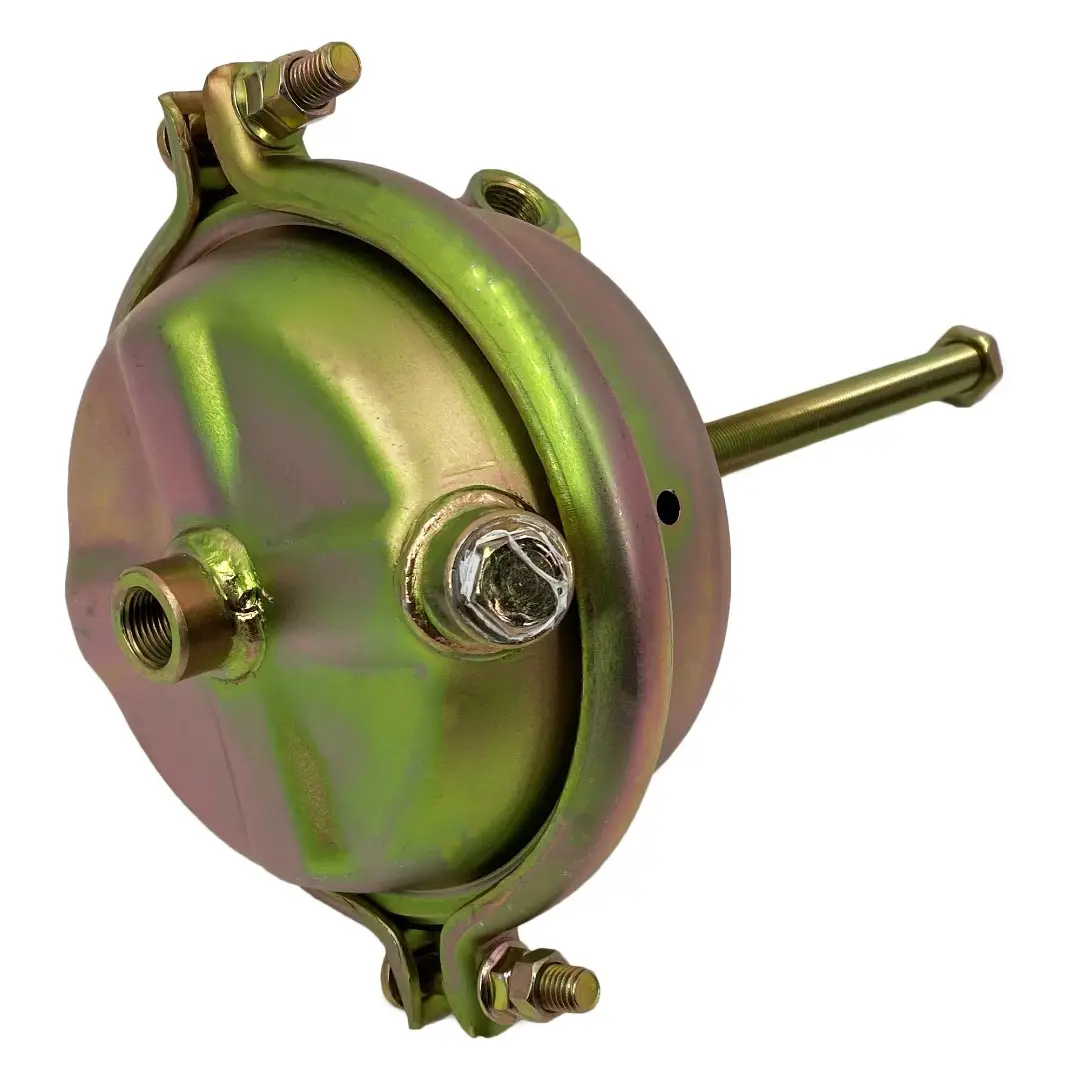

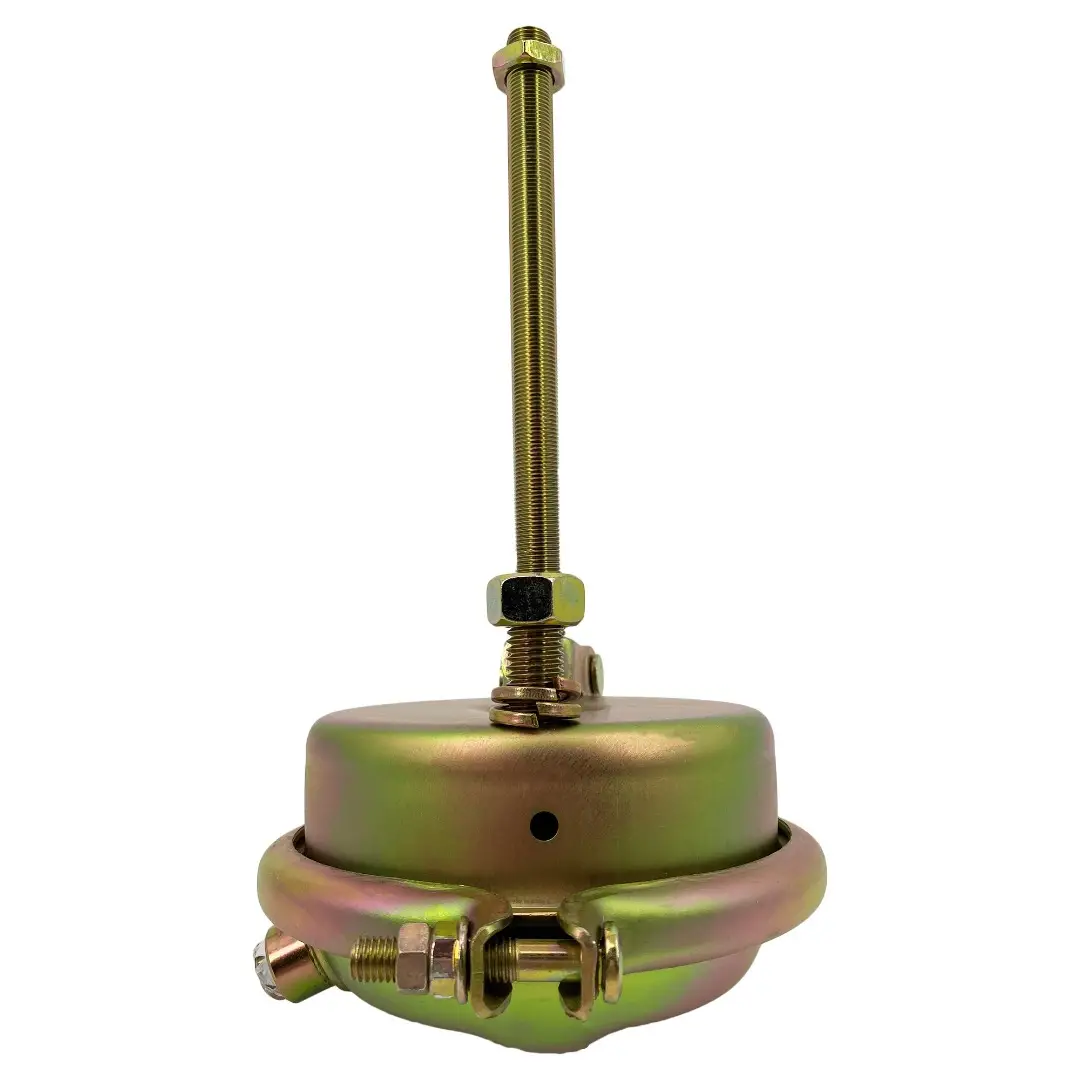

Description : Air Brake Chamber Service Type 20

Part Number : TR20SC

Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Air Brake Chambers
Click to see price
Service Brake Chamber Type 20 for Truck and Trailer Air Brake Systems
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Bendix 800824, 802990, K028225, 801811, 801812, 5019641, 509642
Dayton 05‑120
Euclid E20S
Haldex SC20, SC20D, 125200101
Mack 19QE465RP3
MGM 1420001, 1621‑CS20L
TSE 20HSCND2‑3630, 20SCLD2H
Velvac 30017
Property Value
Actuator Type Size 20
Stroke Type Standard
Available Stroke 2‑1/4" (57mm)
Length from Mounting Bracket to End of Housing 4" (102mm)
Clampband Diameter 8‑5/8" (218mm)
Stud Spacing 4‑3/4" (120.7mm)
Pushrod Length 10‑3/16"
Pushrod Threads 5/8"‑18 UNF
Service Clampband Position 0°
Air Port Position 90°
Weight 7.5 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
14.69" 8.46" 6.91" 19.36 lbs

No outer box information is available for this product.
