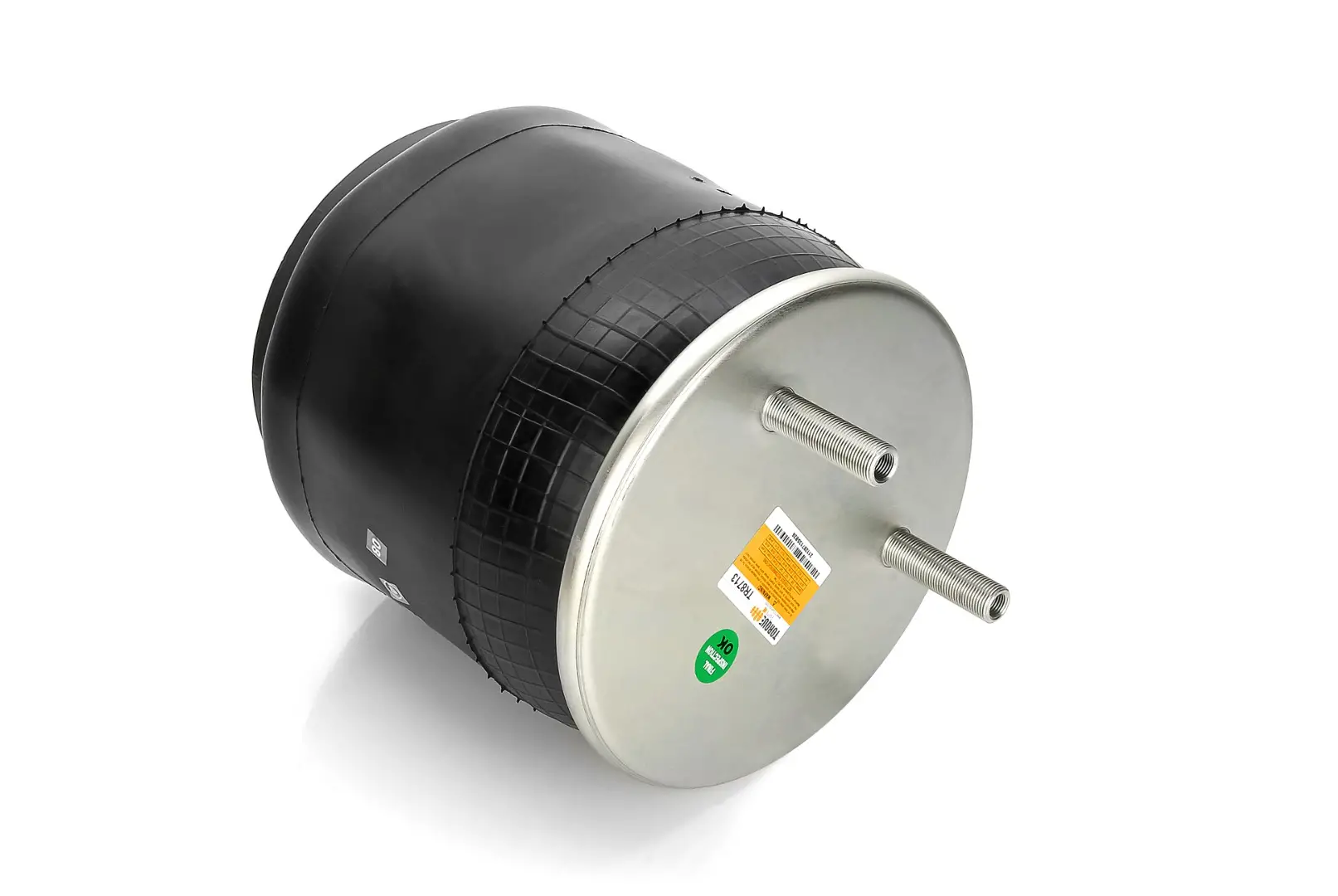

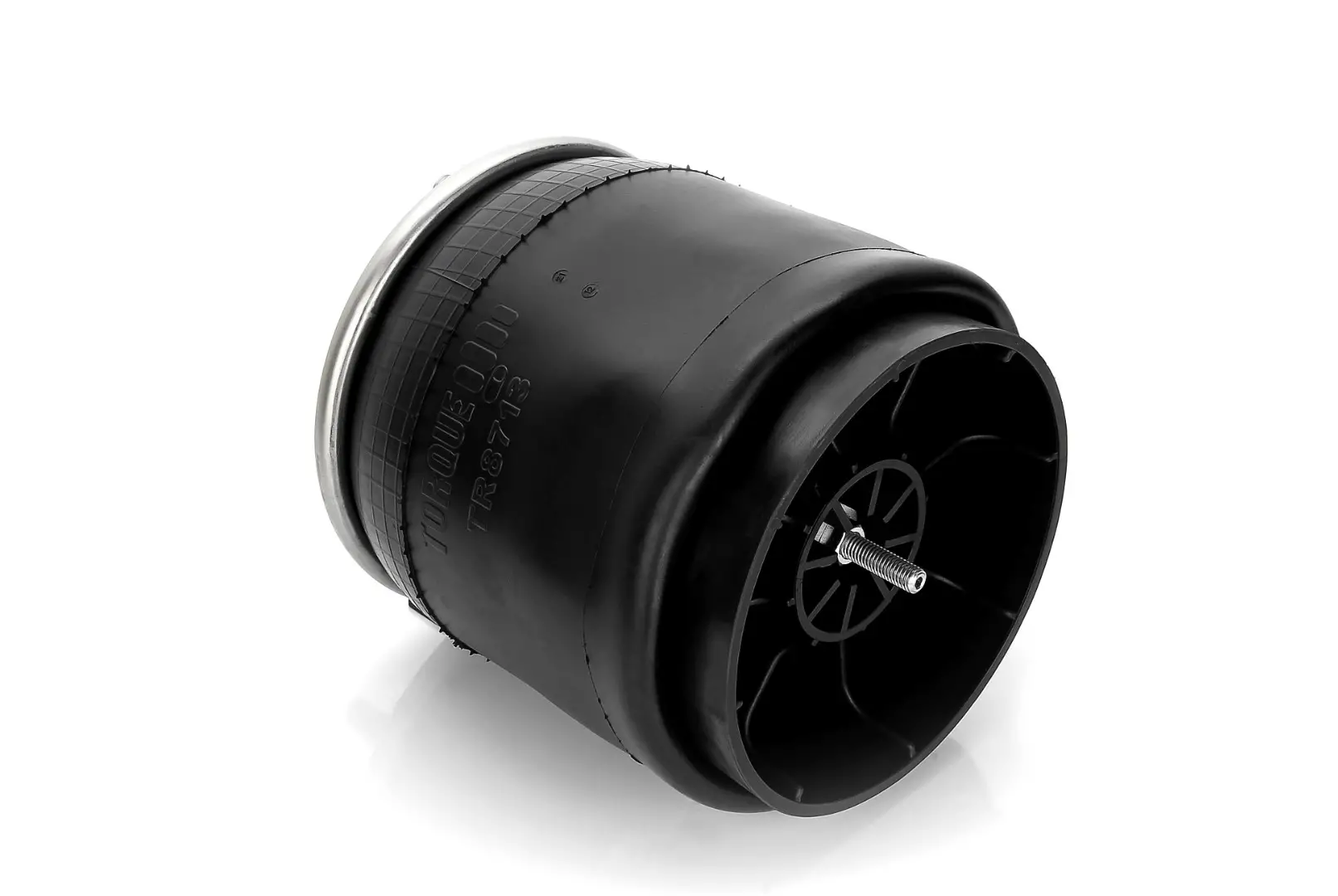

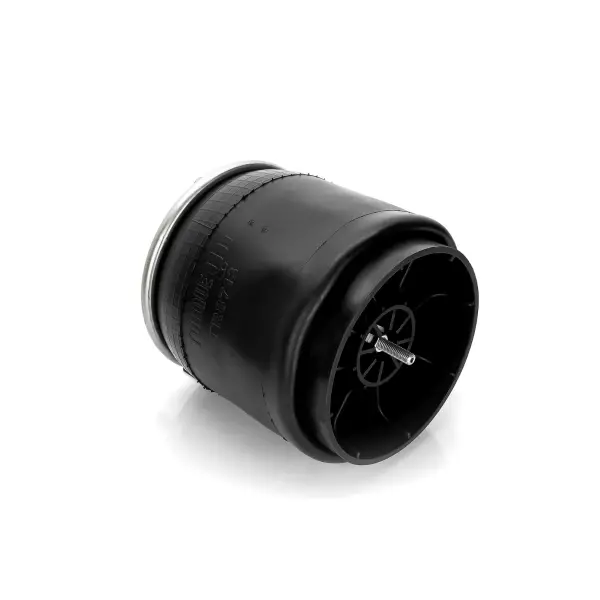

Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140

Description : Air Spring for Hendrickson

Part Number : TR8713

Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140
Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140
Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140
Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140
Air Spring Replaces C-22948, S-22948, W01-455-8713, 1R13-140
Click to see price

Air Spring for Hendrickson



Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 566.ER8713
Contitech 10 10-16 P 533, 64636, 10 10-16 S 533
Firestone 8713, 8727, W013588713, W01-358-8713, W014558713, W01-455-8713, W014558727, W01-455-8727
Goodyear 1R13140, 1R13-140, 1R13176, 1R13-176, 1R13263, 1R13-263, 1R13323, 1R13-323
Hendrickson C22948, C-22948, S22948, S-22948
Triangle AS-8533

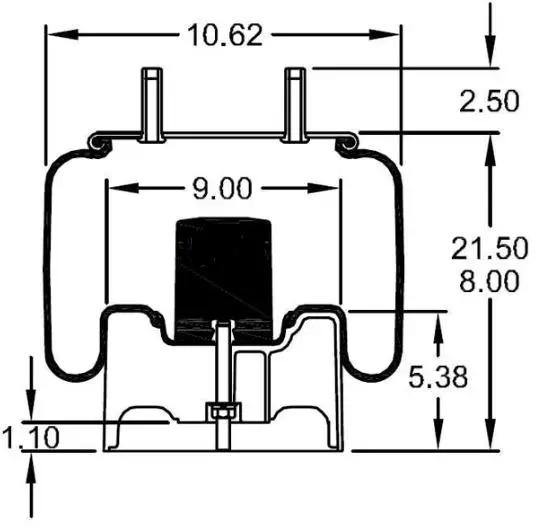

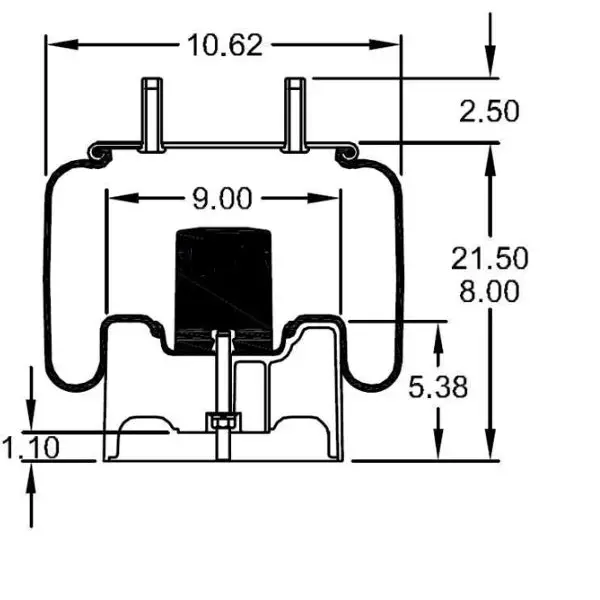

Extended Height: 21.50"
Compressed Height: 8.00"

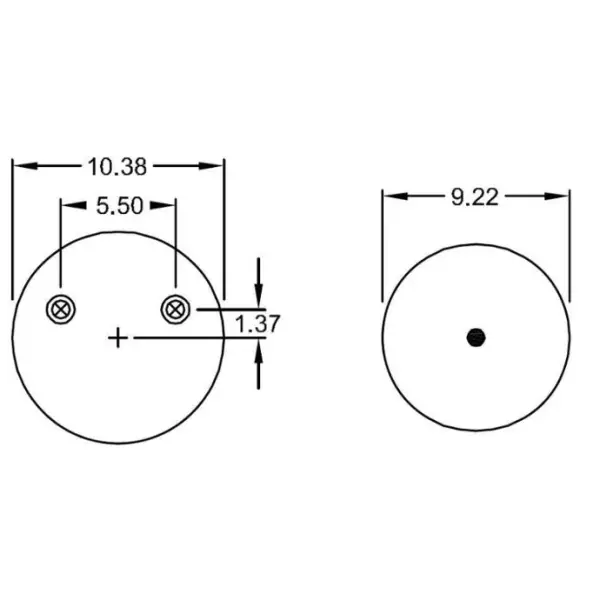

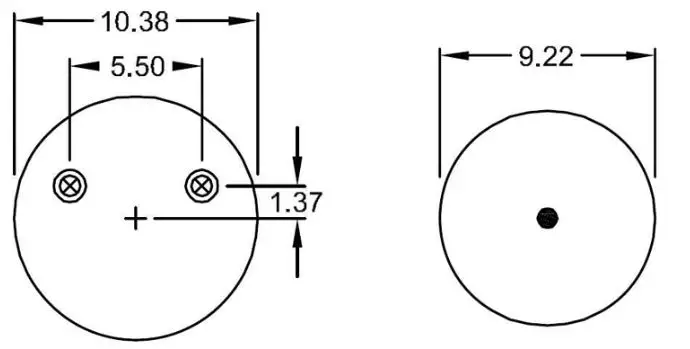

Top Plate Width: 10.38"
Piston Width: 9.22"
Weight: 15.6 lbs
